Federal Pacific Panel Replacement in the Coachella Valley: What Every Homeowner Needs to Know

If your Coachella Valley home has a Federal Pacific panel (an FPE Stab-Lok), plan on replacing it. Keeping it is not illegal. But the documented failure record on the FPE panel is what drives the decision. We’re Home Team Electric. And we’ve been pulling these out of valley homes since 2006.

The Verdict: Replace a Federal Pacific Panel

The tracts built around Racquet Club Estates got Stab-Lok panels by the hundreds. So did Thunderbird-era Rancho Mirage and the older Indio townsite. Our verdict is simple: if the gray box on your stucco wall reads Federal Pacific or FPE, put a replacement on the plan. Grandfathered does not mean safe. You can schedule a same-week electrical panel upgrade evaluation with our founder Frank Luersen’s team. They work under California C-10 Electrical Contractor License #879507. Verify that license yourself at cslb.ca.gov.

Why Stab-Lok Breakers Fail: The Data

Out here, panels live outside on stucco. From May through October, heat beats down on them. San Gorgonio Pass grit works into every seam. The Stab-Lok design was never built for that. And the national record shows it.

The U.S. Consumer Product Safety Commission opened a formal investigation into Federal Pacific Electric Stab-Lok residential circuit breakers in June 1980. In its March 3, 1983 press release closing that two-year investigation, the Commission stated that the data available at that time did not establish that the breakers posed a serious risk of injury to consumers. It made no determination about the safety of FPE breakers. That same release confirms that CPSC testing found many Stab-Lok breakers failed UL calibration test requirements. Those tests check that a breaker trips in time when a circuit is overloaded.

Are federal pacific panels dangerous? Are federal pacific panels bad? The failure mode is specific and on the record. A technical report in CPSC’s FOIA files states that under certain conditions some Stab-Lok breakers would jam completely instead of opening. In that report’s test program, 85 percent of the double-pole breakers and 39 percent of the single-pole breakers failed one or more UL test criteria. The same paper describes the most common FPE Stab-Lok panels as failure-prone at the bus and breaker interconnections, which can overheat under high current loading. The report submitted to CPSC concludes that virtually every FPE Stab-Lok panel installed in homes contains circuit breakers that are seriously defective and should be replaced for electrical and fire safety.

The recall question deserves a clear answer. FPE Stab-Lok breakers were never subject to a mandatory CPSC recall. The Commission’s record of action on December 8, 1982 documents its vote closing the two-year investigation. No recall was issued. The real concern is the failure mode in the record, not a recall order.

What our State-Certified Residential Specialists see behind the covers here matches that record. Heat makes parts expand and shrink, and connections loosen. Desert winds push dust inside. A federal pacific circuit breakers row can look fine on the outside while the inside tells a different story. Frank has replaced enough of these across the valley to read the box before he even opens it.

How to Identify a Federal Pacific Panel in Your Home

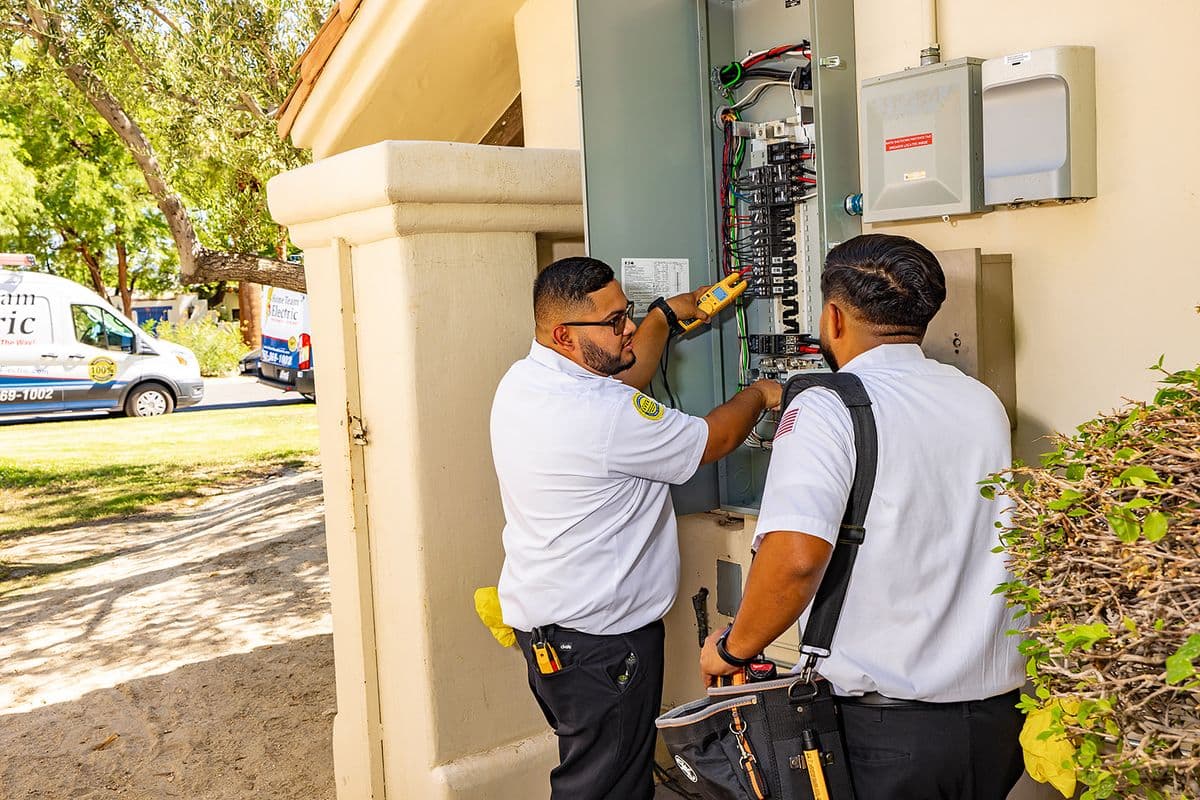

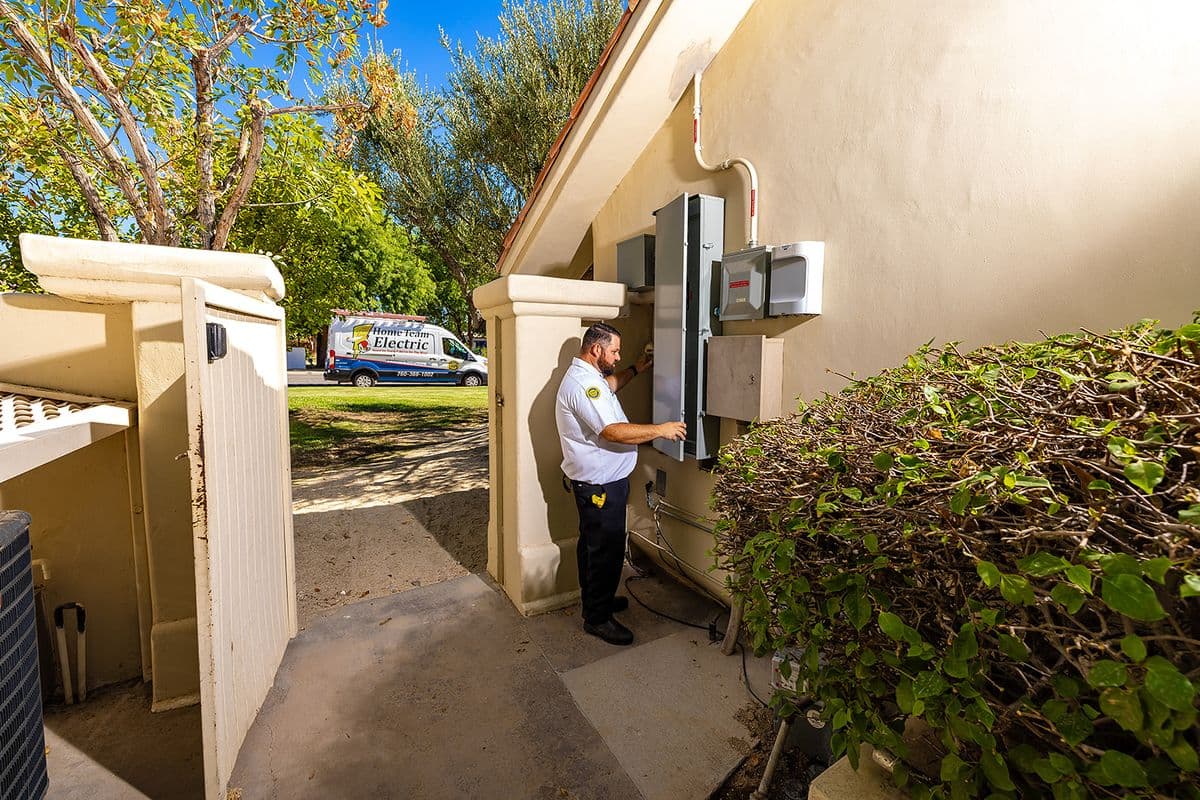

You can spot one yourself before we ever pull up. Most valley homes carry an outdoor meter-main on the stucco, usually on the side facing the wash. Read the door. Then read the breakers.

1. Check the panel door or cover face. Look for the Federal Pacific or FPE nameplate printed or embossed on the metal enclosure door. On mid-century Palm Springs tracts, that label is often faded from decades of sun, so look at an angle.
2. Examine the breaker faces. Stab-Lok breakers show the Stab-Lok name printed on the toggle itself. The toggles are narrow, with a thin rocker profile that reads nothing like a modern breaker.
3. Note the panel color and style. Many FPE enclosures are beige or gray with a slim door, common on residential construction from the 1960s through the 1980s.

The Stab-Lok story runs beyond one Palm Springs neighborhood. Thunderbird-era Rancho Mirage homes built near Thunderbird Country Club through the 1950s and 1960s carry them, and so do broad stretches of mid-century Desert Hot Springs and Cathedral City tracts. The older Indio townsite as well. If your label is faded or the door is missing, one of our State-Certified Residential Specialists can identify FPE equipment by internal bus-bar markings. Photograph the label and the breaker row, send it in, and we can usually tell you what you’re working with before the truck rolls.

Coachella Valley Replacement Cost: What to Expect

We don’t publish install price ranges, and we don’t compete on price. Every job starts with a field evaluation, then guaranteed upfront pricing before any work begins. Here is what drives the number in a valley home.

The outdoor meter-main combo. Most desert homes here use an all-in-one outdoor unit where the utility cutover, meter socket. And main breaker live in one enclosure. This is a different replacement scope than the indoor service entrances common in other regions. That difference changes how we stage the cutover.

The 2020 whole-home surge protection requirement. IAEI Magazine’s reporting on NEC 2020 explains that Section 230.67 requires a Type 1 or Type 2 surge protective device on all services supplying dwelling units. It must be installed in or immediately adjacent to the service equipment. This applies to new construction as well as service upgrades or replacements. Out here, that SPD earns its keep against monsoon lightning off the Little San Bernardinos and grid spikes that ride the same line into your HVAC and EV charger.

Utility territory. Properties west of Washington Street are served by Southern California Edison. Properties east of Washington Street are served by the Imperial Irrigation District. Each utility has its own cutover scheduling and inspection rhythm. And that affects the timeline. Palm Springs, Desert Hot Springs, and Cathedral City sit on SCE. Indio, Coachella, La Quinta, Indian Wells, and Bermuda Dunes sit on IID. Palm Desert and Rancho Mirage split along that Washington Street line.

Load capacity. EV chargers, mini-splits, and pool equipment are common here. A full FPE removal often runs alongside a 200A or 320A service upgrade with a solar-ready bus.

Founder Frank Luersen brings 28 years of residential electrical work across the Coachella Valley and Morongo Basin. And our team has completed over 25,000 residential electrical projects since 2006. Five generations of the Luersen family have worked in this community. Our $99 standard service fee covers the time to evaluate the situation, review the available options. And provide guaranteed pricing before any work begins. Every install carries our Lifetime Workmanship Guarantee on all labor. Same-day service is available.

If the gray box on your stucco reads Federal Pacific or FPE. Or the breakers say Stab-Lok, this article describes the situation in your own home. Book a guaranteed-price electrical panel upgrade evaluation today, or call 760-248-8709.

Key Takeaways

• If you have a Federal Pacific panel with Stab-Lok breakers, start the replacement talk now. Do not wait and see.
• The CPSC opened its investigation in June 1980 and closed it in March 1983. There was no finding and no mandatory recall.
• A technical report in CPSC’s FOIA files found that 85 percent of the double-pole Stab-Lok breakers and 39 percent of the single-pole breakers failed one or more UL test criteria, and concluded that nearly every FPE Stab-Lok panel holds breakers that are seriously defective.
• To spot one, check the door for the name FPE. Then check the breaker toggles for the Stab-Lok name.
• Replacement cost in the valley depends on a few things. The outdoor meter-main scope. NEC 230.67 surge protection rules. SCE or IID territory. And your load capacity needs.

Quick Answer

Replace it. A Federal Pacific panel with Stab-Lok breakers has a documented failure mode, and the CPSC investigated this issue from 1980 to 1983. Their files describe widespread defective breakers. Book a guaranteed-price panel upgrade evaluation with Home Team Electric, C-10 License #879507, to plan the replacement on your terms.
